Single Aluminum Pan Racks

$580.00$1,135.28

SKU: ARS

End load with 10-20 pan capacity, pan stop, and caster options

Clear
Need a Custom Design? Bulk Pricing?
Get an Immediate Quote
or Call (866) 948-2514
Please Note
Schaumburg Specialties reserves the right to amend, change or modify any prices on this website. Please be advised that due to the extreme inflation of material and labor costs, prices shown are subject to change without notice and may differ on the final quotation or invoice issued. We apologize for any inconvenience this may cause.

– 1″ square, 1/8″ wall tube frame
– 1″ x 1-1/2″ x 1/8″ angle – pan slides (standard – easily customizable)
– All welded construction
– Full clearance under middle cross-tubes
– All tube-ends welded closed, for easy clean and keep out bacteria
– Caster-mounting plates welded to the bottom corners to reinforce base of rack

Pan Capacity Variants:

  • 10-Pan Capacity, 6″ Spacing, 10 Shelf Levels
  • 12-Pan Capacity, 5″ Spacing, 12 Shelf Levels
  • 15-Pan Capacity, 4″ Spacing, 15 Shelf Levels
  • 20-Pan Capacity, 3″ Spacing, 20 Shelf Levels

Oven Rack Lift Variants:

  • No Oven Lift: 5″ x 1-1/4″ Polyolefin Wheels
    • Dimensions: 20-1/2″ W x 26″ L x 69-3/16″ H

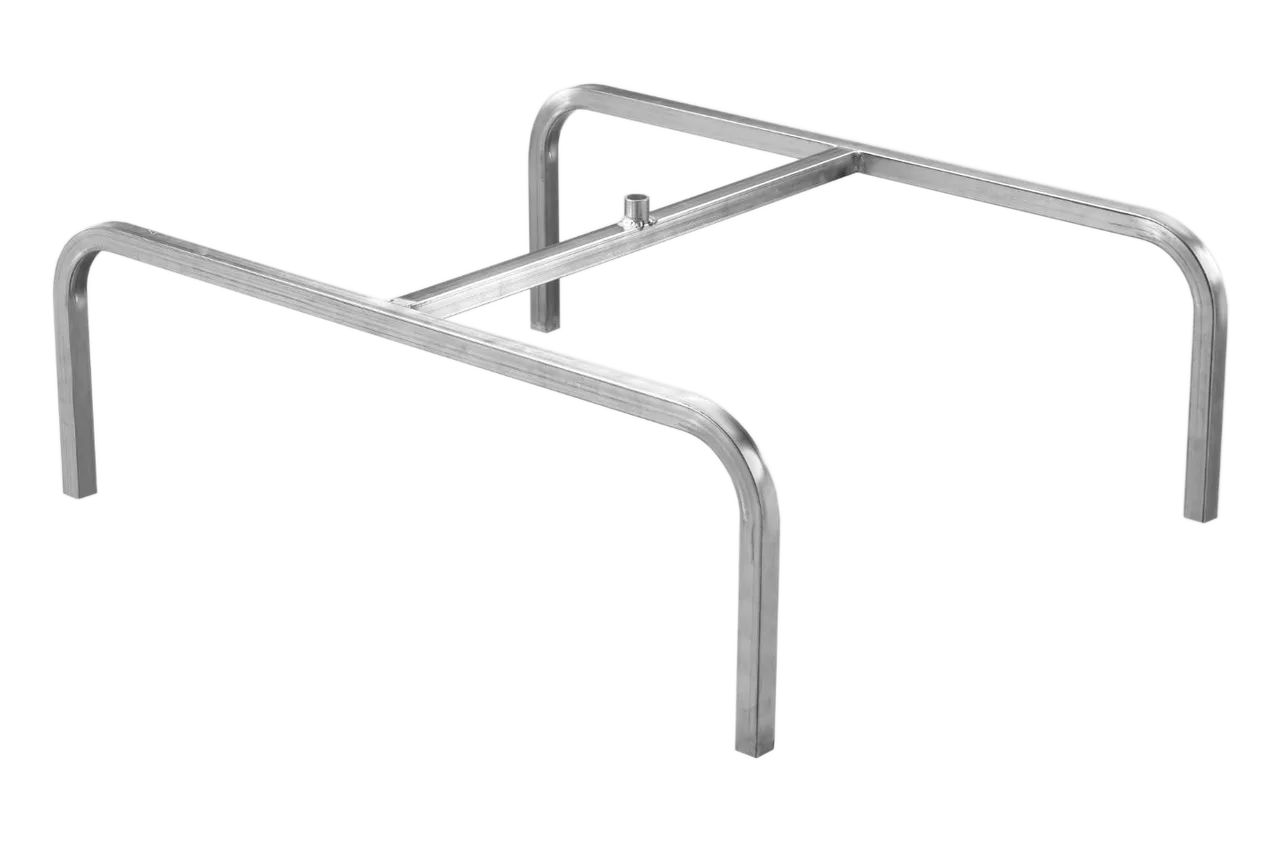

  • Revent “A” Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
    • Dimensions: 20-1/2″ W x 26″ L x 70-1/2″ H

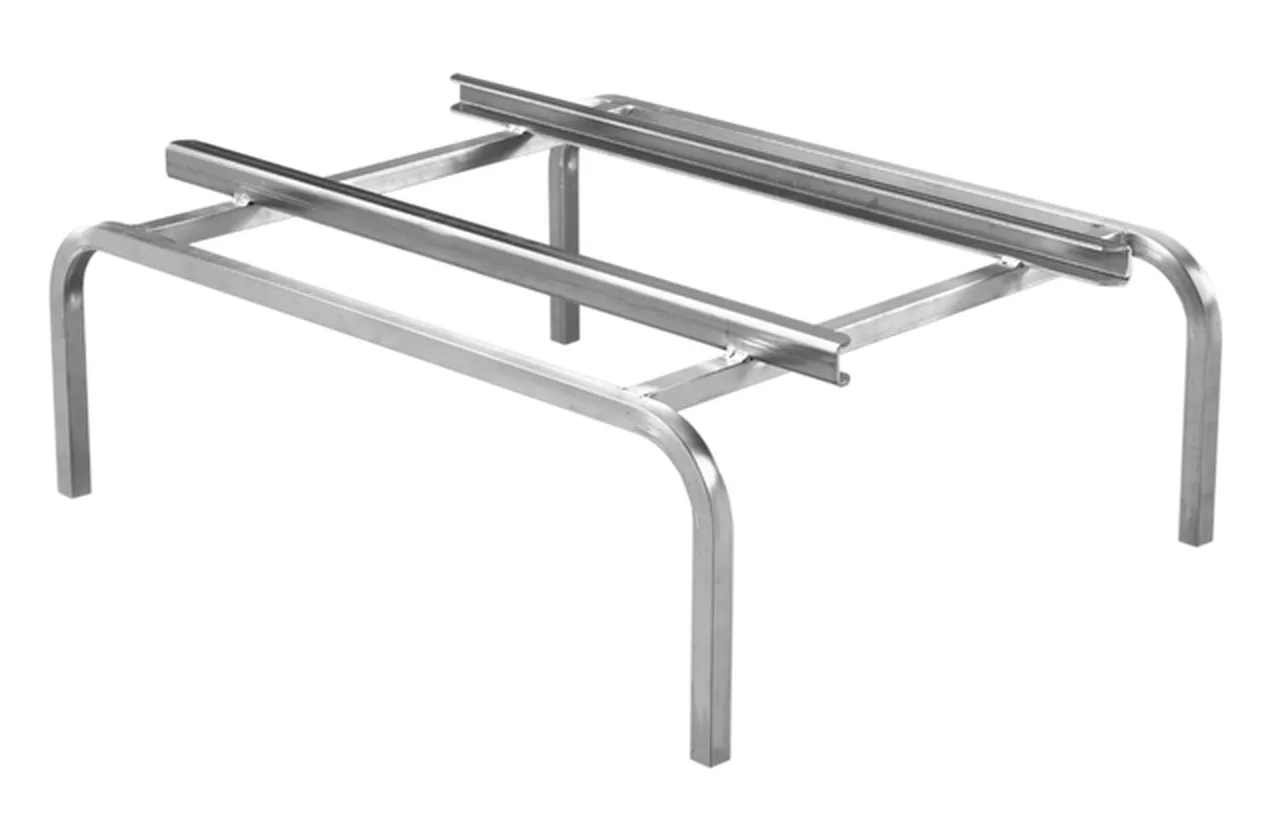

  • Baxter Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
    • Dimensions: 20-1/2″ W x 26″ L x 68-3/16″ H
  • Revent “C” Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
    • Dimensions: 20-1/2″ W x 26″ L x 70-1/2″ H

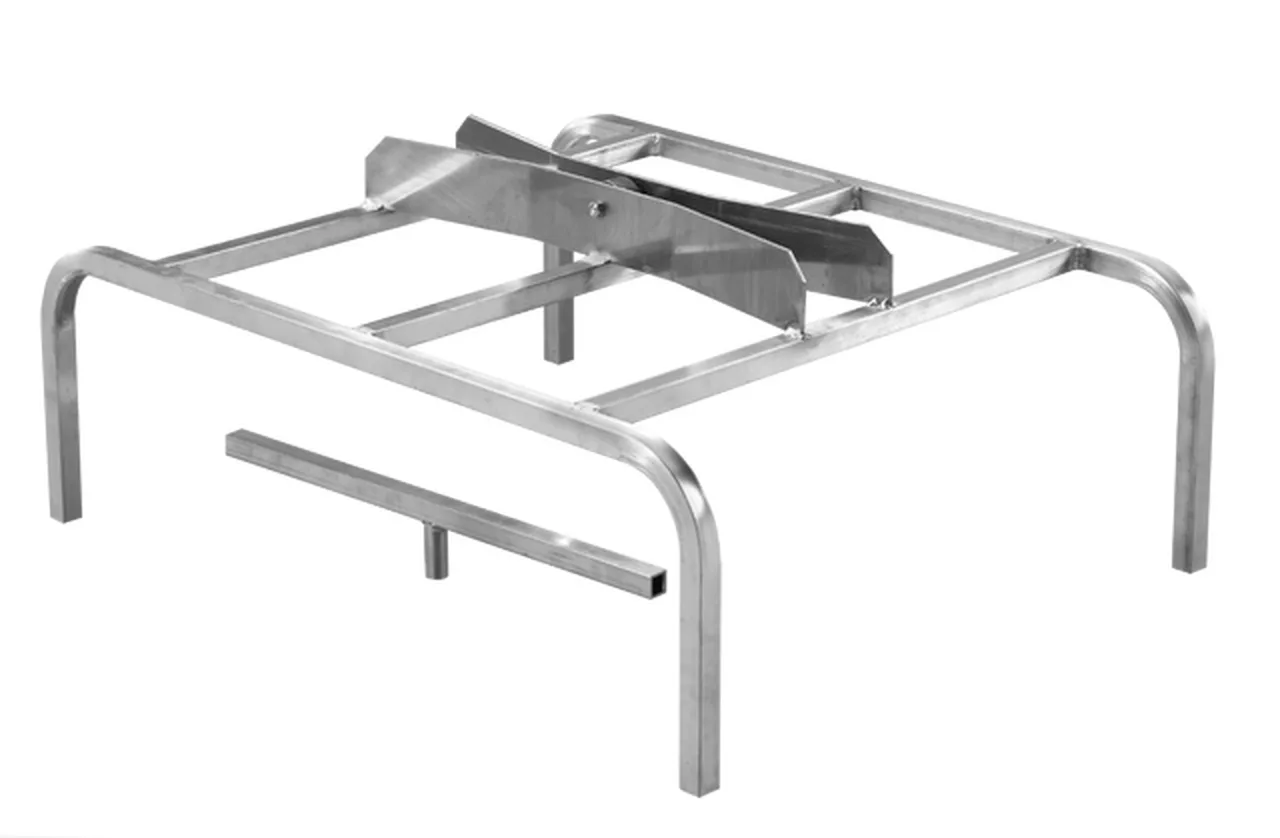

  • Dahlen Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
    • Dimensions: 20-1/2″ W x 26″ L x 70-1/2″ H
