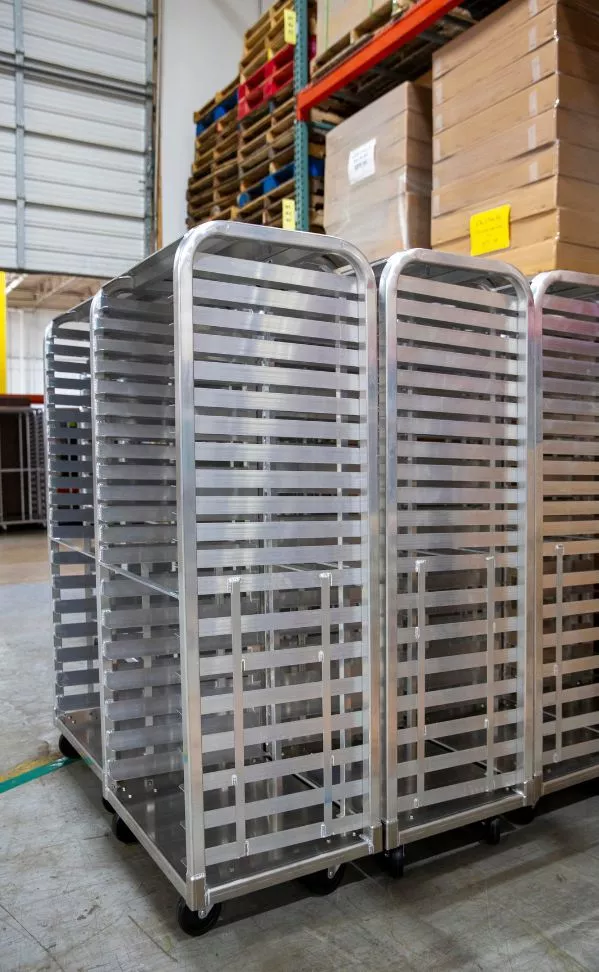

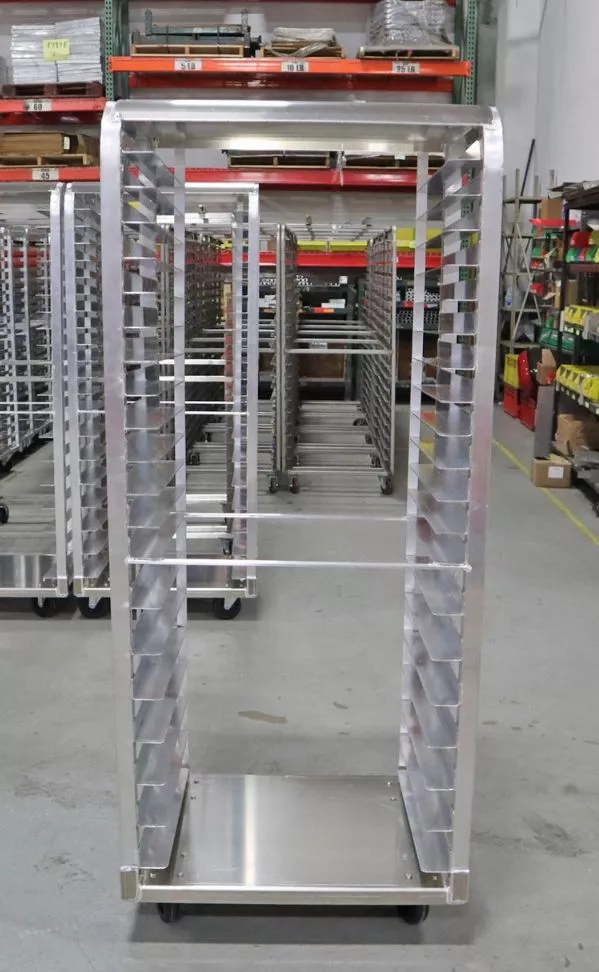

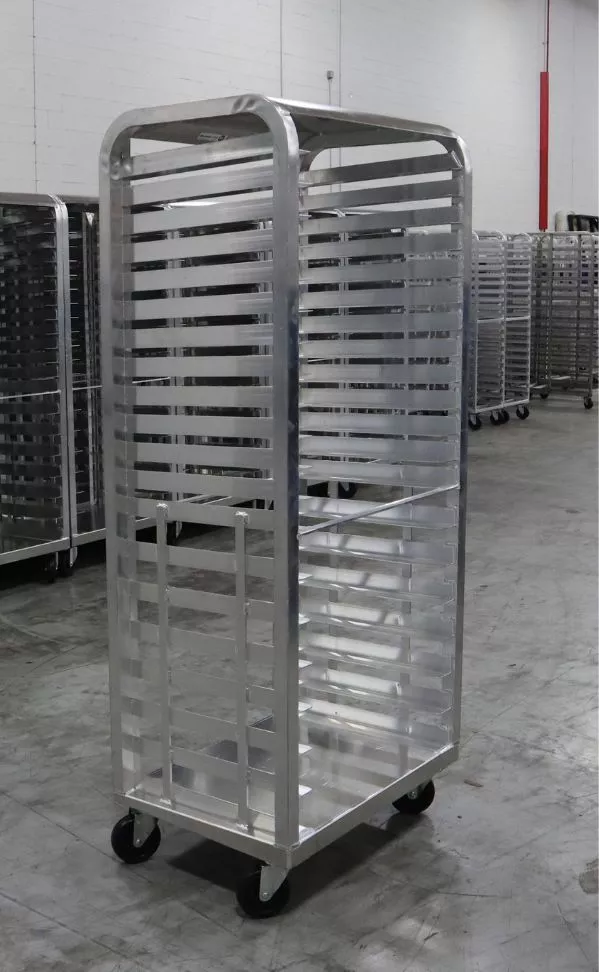

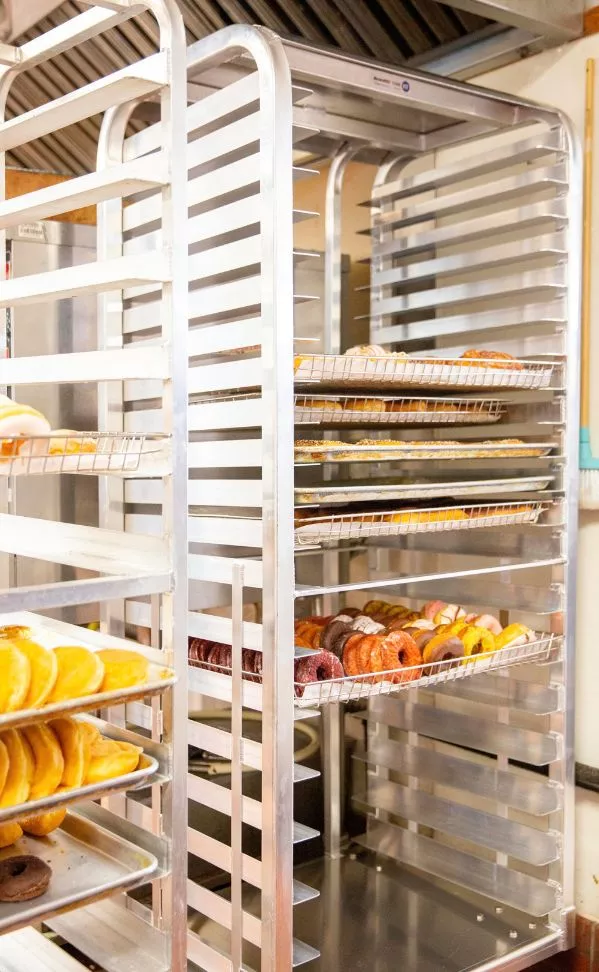

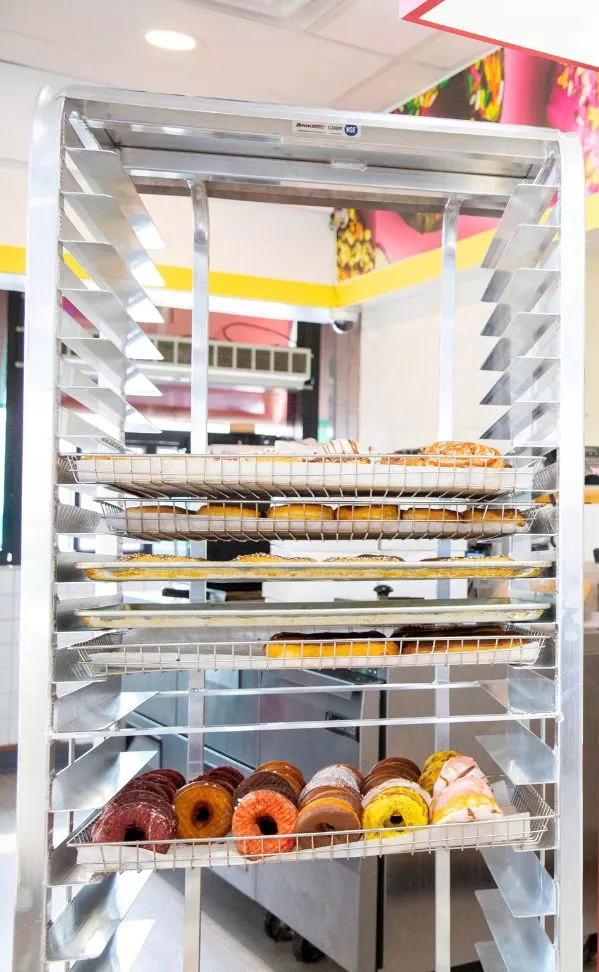

NSF Donut Basket Racks / Donut Basket Storage / Donut Basket Trolley / Donut Baking Basket Rack

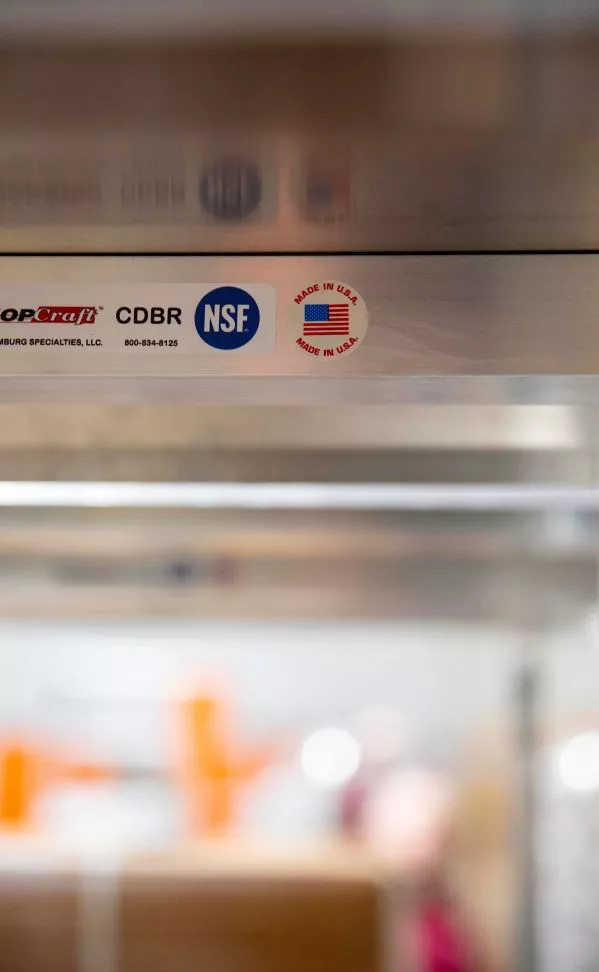

NSF Certified Overall dimensions:
20 1/2″ W x 26″ L x 69″ H 1-1/2”sq.

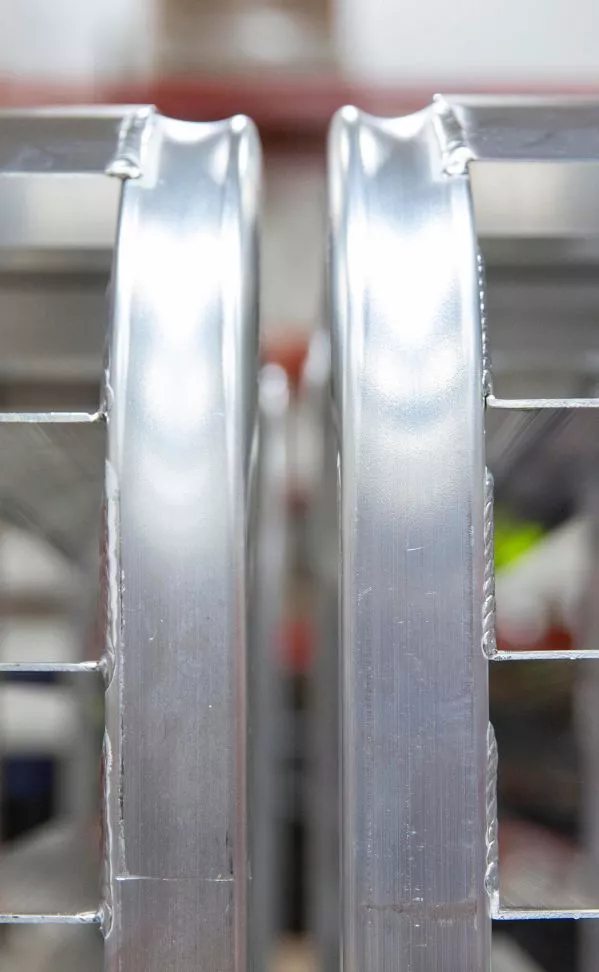

X 1/8” wall tubular structure

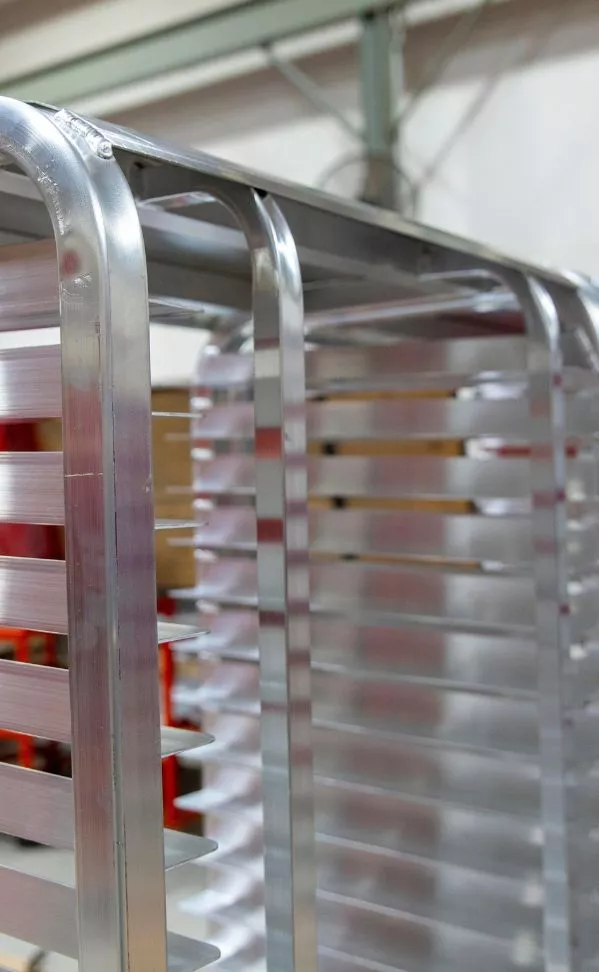

1-3/4”H x 2-1/2”W x .090” aluminum angle for pan slide material
Can be made to the above standard specification but best modified to your exact requirements and needs. Please contact us for a quote.

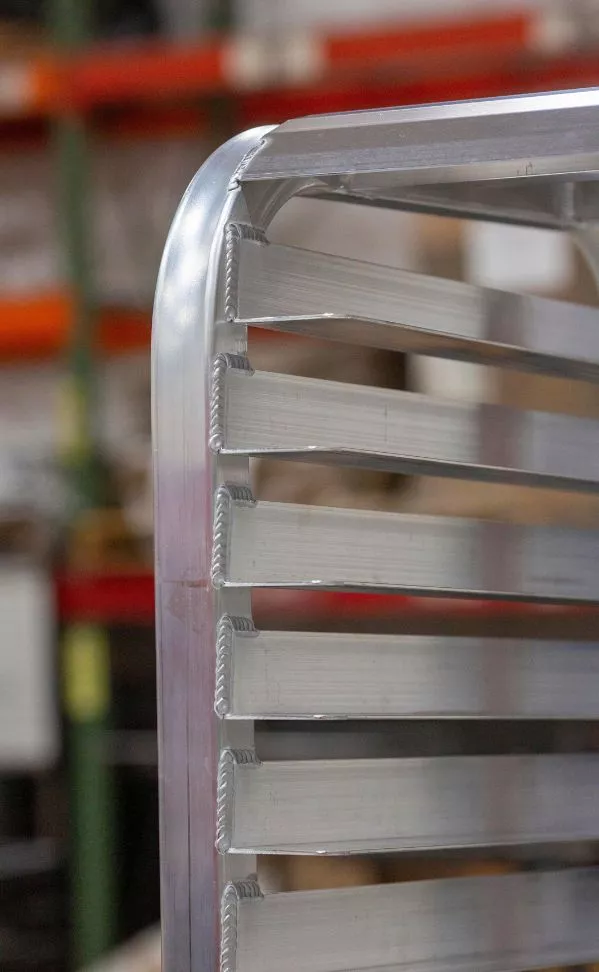

All seams are either welded closed or sealed with food-grade silicone The slides on this rack have 2-1/2 degree downward slope toward back pan stop. Holds two 10″ x 26″ donut baskets per level. All-welded construction; no rivets, nuts, or bolts, except for the fasteners which attach the casters. The casters are bolted onto the heavy aluminum rack base. Heavy-duty delivery zinc-plated steel swivel plate casters with 5” x 2” polyolefin wheels.
Applications:

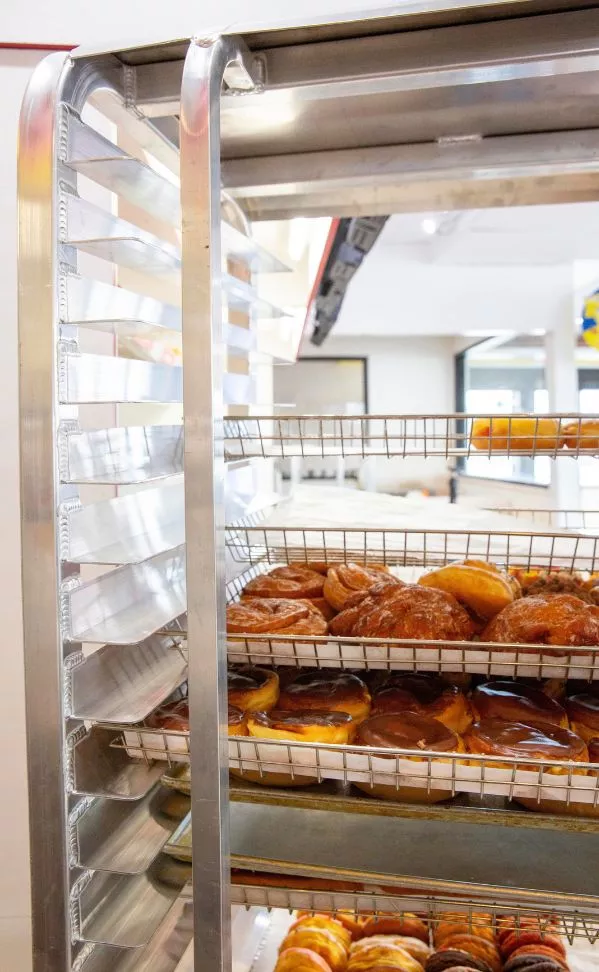

This rack is for the safe transport of Donut Baskets or Donut Screens from the Commissary to the Store. These racks can also be ordered with a spacing combination for flat and shingled donut delivery. Looking for replacement casters for your pan racks or other equipment?
