- 1″ square, 1/8″ wall tube frame
- 1″ x 1-1/2″ x 1/8″ angle – pan slides
- All welded construction, no rivets or nuts & bolts except for the stainless steel fasteners which attach the casters; vertical support tube in center of each side panel strengthens slides
- Full clearance under middle-cross tubes
- All tube-ends welded closed, for easy clean
- Caster-mounting plates welded to each corner greatly strengthen base of rack
Pan Capacity Variants:
- 20-Pan Capacity, 6″ Spacing, 10 Shelf Levels
- 24-Pan Capacity, 5″ Spacing, 12 Shelf Levels
- 30-Pan Capacity, 4″ Spacing, 15 Shelf Levels
- 40-Pan Capacity, 3″ Spacing, 20 Shelf Levels
Oven Rack Lift Variants:
- No Oven Lift: 5″ x 1-1/4″ Polyolefin Wheels
- Dimensions: 28-1/2″ W x 36″ L x 69-3/16″ H

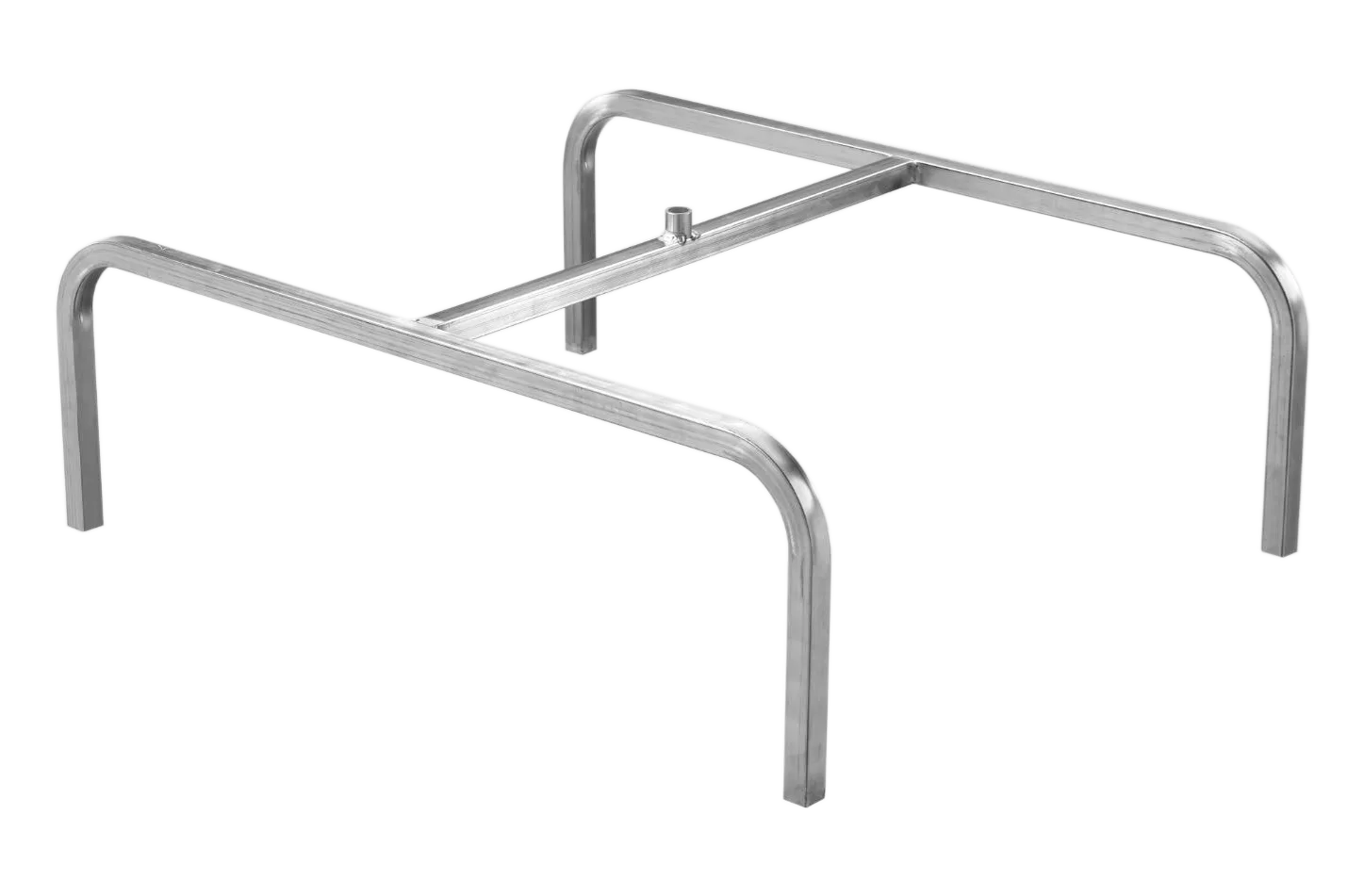

- Revent “A” Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
- Dimensions: 28-1/2″ W x 36″ L x 70-1/2″ H

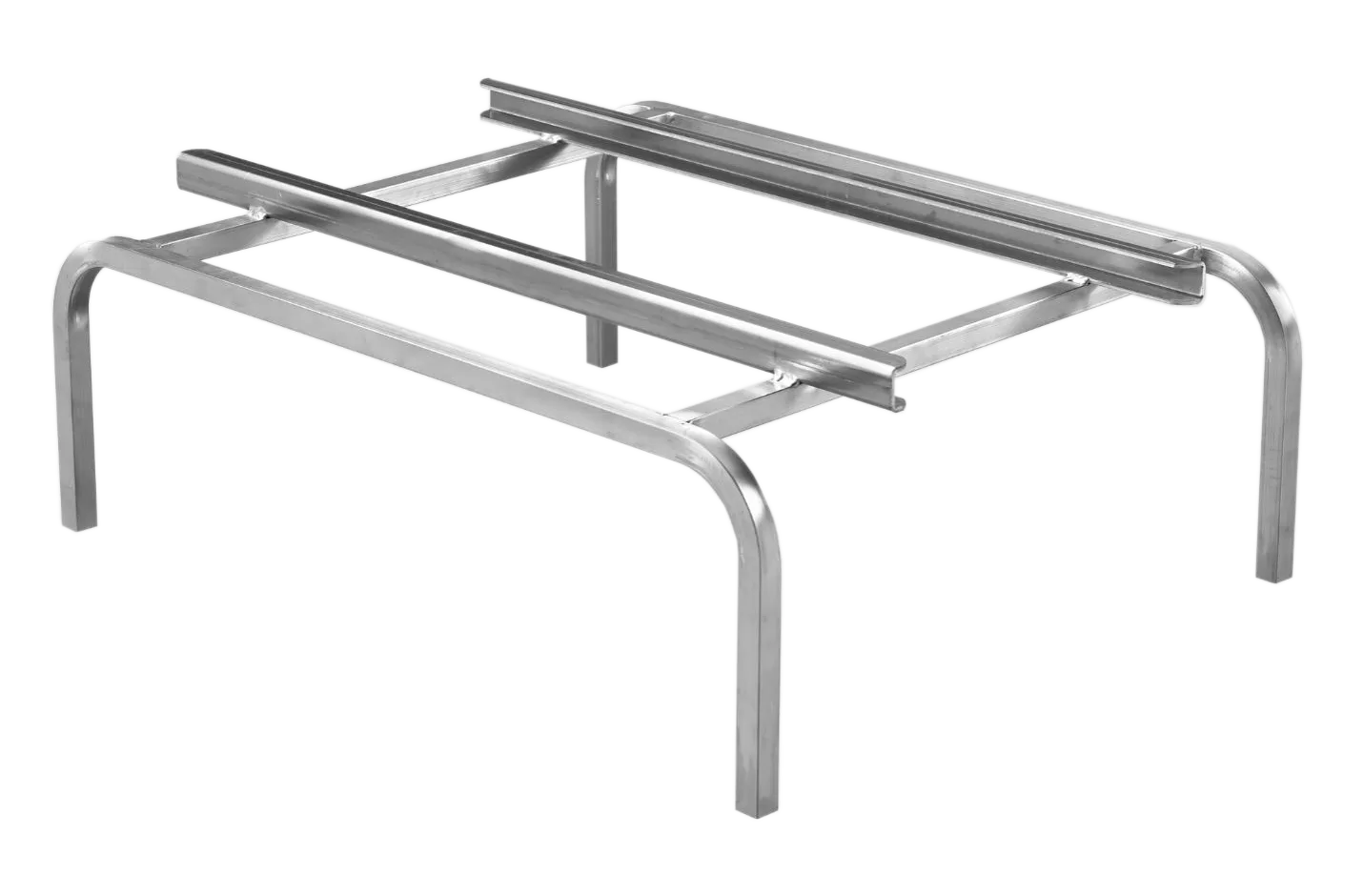

- Baxter Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
- Dimensions: 28-1/2″ W x 36″ L x 68-3/16″ H

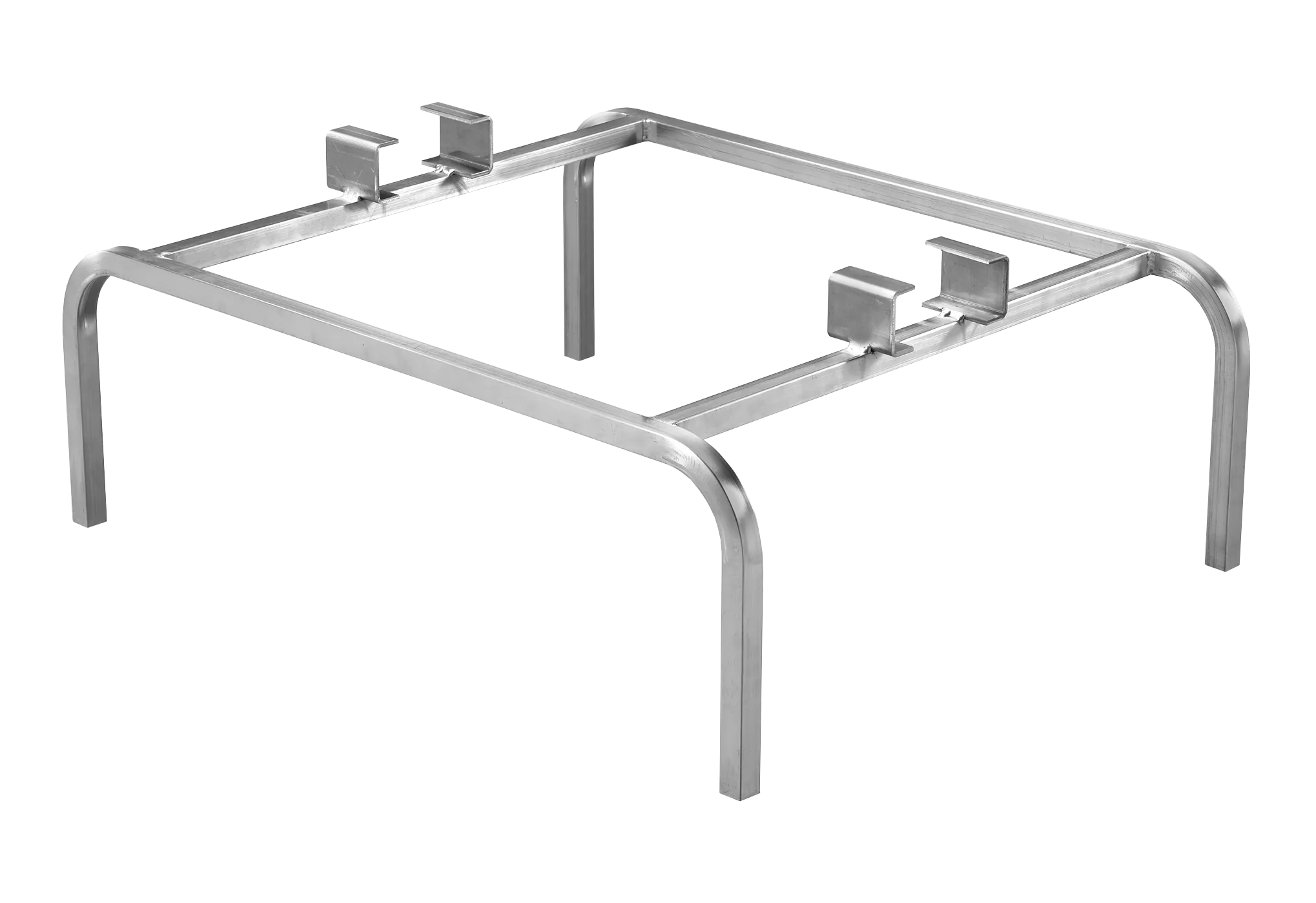

- Revent “C” Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
- Dimensions: 28-1/2″ W x 36″ L x 70-1/2″ H

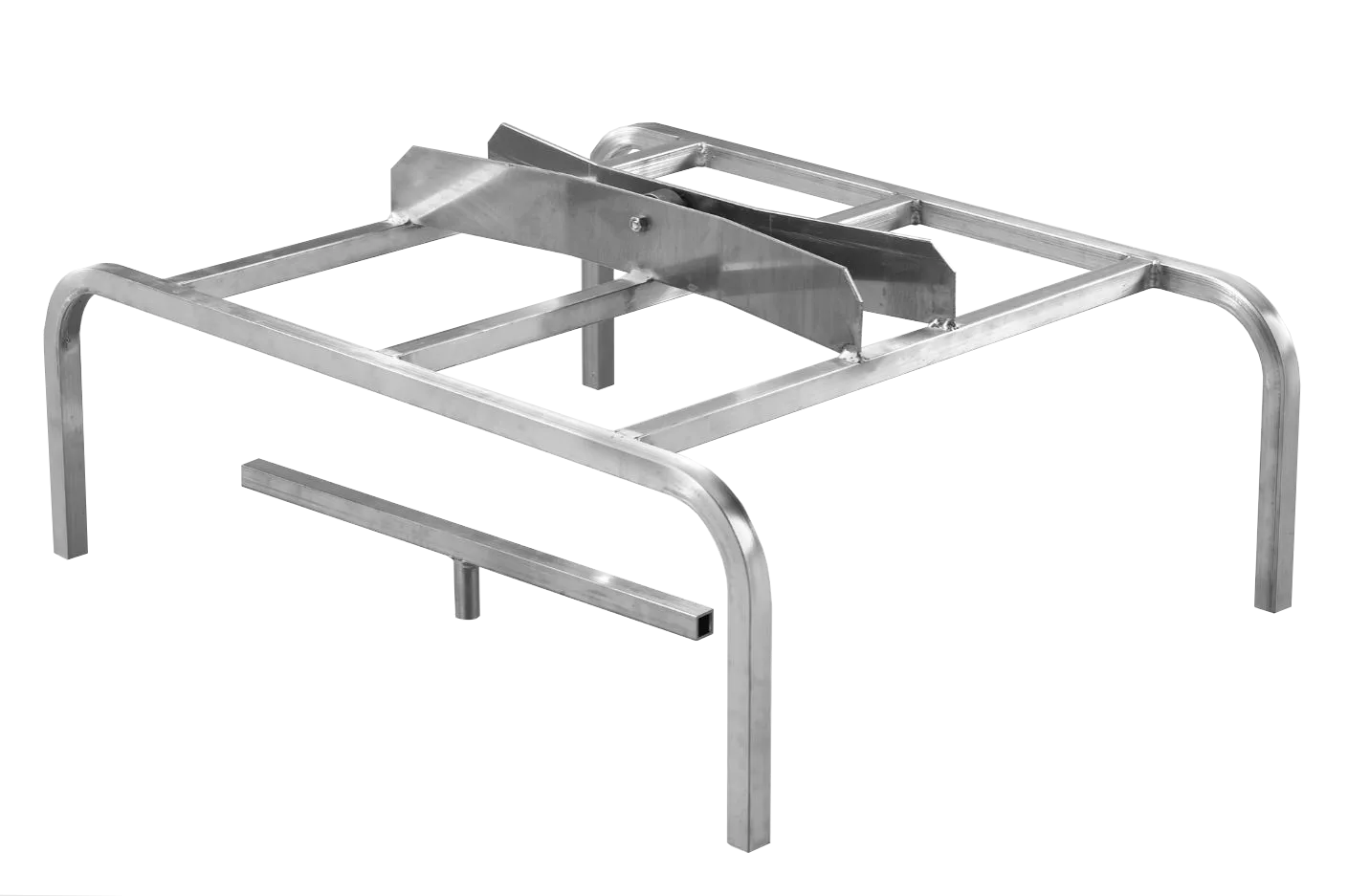

- Dahlen Oven Lift: 4″ x 1-3/8″ High-Temperature Wheels
- Dimensions: 28-1/2″ W x 36″ L x 70-1/2″ H
